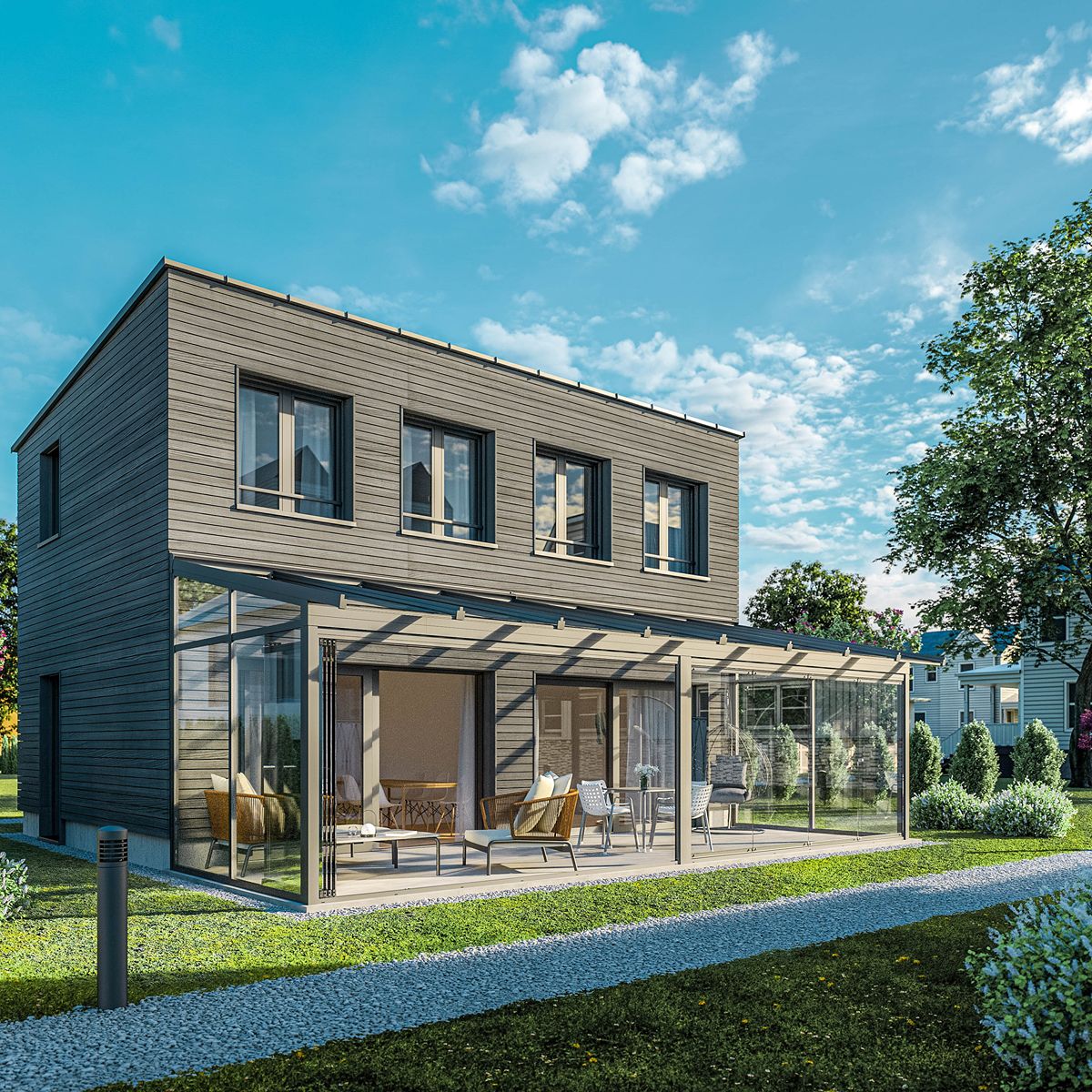

Prime 2.0 Custom Patio Roof
£3,010.00
The patio roof for tricky roof lines and personal taste, built around your house rather than a standard shape.
Some patios are simple rectangles. Others sit under an awkward gable end, back onto a balcony, or need a roof pitch that lines up with the house behind. A standard off-the-shelf canopy will not always work here. Prime 2.0 is built for exactly this problem. It is a fully individual roof system, so your installer can match the shape, pitch and connection method to your actual house rather than asking you to compromise on a fixed design.
How Does Prime 2.0 Fit Awkward Or Angled Spaces?
Prime 2.0 offers seven standard roof shapes as a starting point, including single-pitch, hip, gable and L-shaped layouts, and can be adapted into genuinely custom designs. Roof pitches run from 5 degrees right up to 45 degrees.
That flexibility makes Prime 2.0 a strong option for retrofitting an existing patio, integrating a new roof into a planned extension, or covering a balcony where a rectangular canopy simply will not sit right.
What Wall Connection Options Do You Get?
Prime 2.0 comes with four wall connection designs: a single-part profile for fast fitting, a two-part profile for steeper pitches, a self-supporting connection for insulated facades, and a dedicated balcony connection.
Each connection is supplied largely ready to install, so your fitting team spends less time adapting parts on site and more time getting your roof up and watertight.
How Large Can A Prime 2.0 Roof Span?
Prime 2.0 spans up to 6.7m without a middle post or steel insert, with larger spans possible using a middle post or reinforced eaves beam. Roof depth reaches up to 5.5m without steel, and more with it.
Four eaves beam sizes (130, 170, 205 and 240) let your installer match the beam to the roof you actually need, rather than over-specifying a heavier structure than necessary.
Is Prime 2.0 Stable Before The Glass Goes In?
A specially designed steel joint between the eaves beam and post gives Prime 2.0 full structural stability even before any glazing is fitted. The frame is genuinely rigid from the moment it goes up.
The system also complies with the recognised structural safety standard for glazing, so you get a roof that is engineered properly rather than just assembled to look right.
What Design And Lighting Options Are There?
Prime 2.0 has a modern, angular cover as standard, and can be finished with a roof overhang of up to 1.5m for extra protection over doors and windows below. LED lighting fits flush into the rafters with a plug-and-play connection.
With 28 standard colours plus a fully custom colour service, Prime 2.0 can be finished to match your house exactly rather than the nearest standard shade.
Prime 2.0 Specifications
| Category | Specification |
|---|---|
| Max span | 6.7m without steel or middle post; larger with middle post |
| Max roof depth | 5.5m without steel insert; larger possible |
| Surface load | Up to 3.5 kN/m2 (higher on request) |
| Roof pitch | 5 to 45 degrees |
| Glass thickness | 8.76mm to 30.76mm |
| Wall connection types | 4: single-part, two-part, self-supporting, balcony connection |
| Eaves beam options | 4 sizes: 130, 170, 205, 240 |
| Roof shapes | 7 standard types, plus fully custom shapes |
| Roof overhang | Optional, up to 1500mm |
| Colour | Any colour available to order, not limited to a standard chart |
| Delivery | 6 weeks |
| Warranty | 15 years |
Frequently Asked Questions
Do I Need Planning Permission For Prime 2.0?
It depends on the size, position and your property type. For a full breakdown of when permission is usually needed, see our guide: Do I Need Planning Permission For A Lean-To Pergola.
Can Prime 2.0 Be Built To A Completely Custom Shape?
Yes. Prime 2.0 offers seven standard roof shapes as a starting point, and can be planned as a fully custom design around your property. Contact us for more details on sizing and shape options.
Can I Choose Any Colour For My Prime 2.0 Roof?
Yes. Prime 2.0 is available in 28 standard colours as well as a fully custom colour service, so it can be matched to your house exactly.
How Long Does Delivery Take?
Prime 2.0 is made to order, with a typical delivery time of 6 weeks from confirmation of your specification.
What Warranty Comes With Prime 2.0?
Prime 2.0 carries a 15-year warranty. It is backed by independent certification, including ISO 9001 quality management, DIN EN 1090 production control, ISO 14001 environmental management, certified sound insulation and wind resistance, RC3 burglar resistance, and CE marking in line with EU requirements.
Is Prime 2.0 Suitable For A Balcony Roof?
Yes. A dedicated balcony connection is available, designed to fix directly to a balcony structure and cope with complex construction situations.
Ready To Design Your Prime 2.0 Roof?
Because every Prime 2.0 is planned around your specific house and roofline, the best next step is a conversation about your space and what you would like it to do. Call us or send through some photos and rough dimensions, and we will help you shape a specification, with delivery in around 6 weeks.
