Deponti Pinela Deluxe PLUS
£12,761.16
Deponti Pinela Deluxe Plus Pergola - A Practical Way To Create a Wide, Open Covered Space

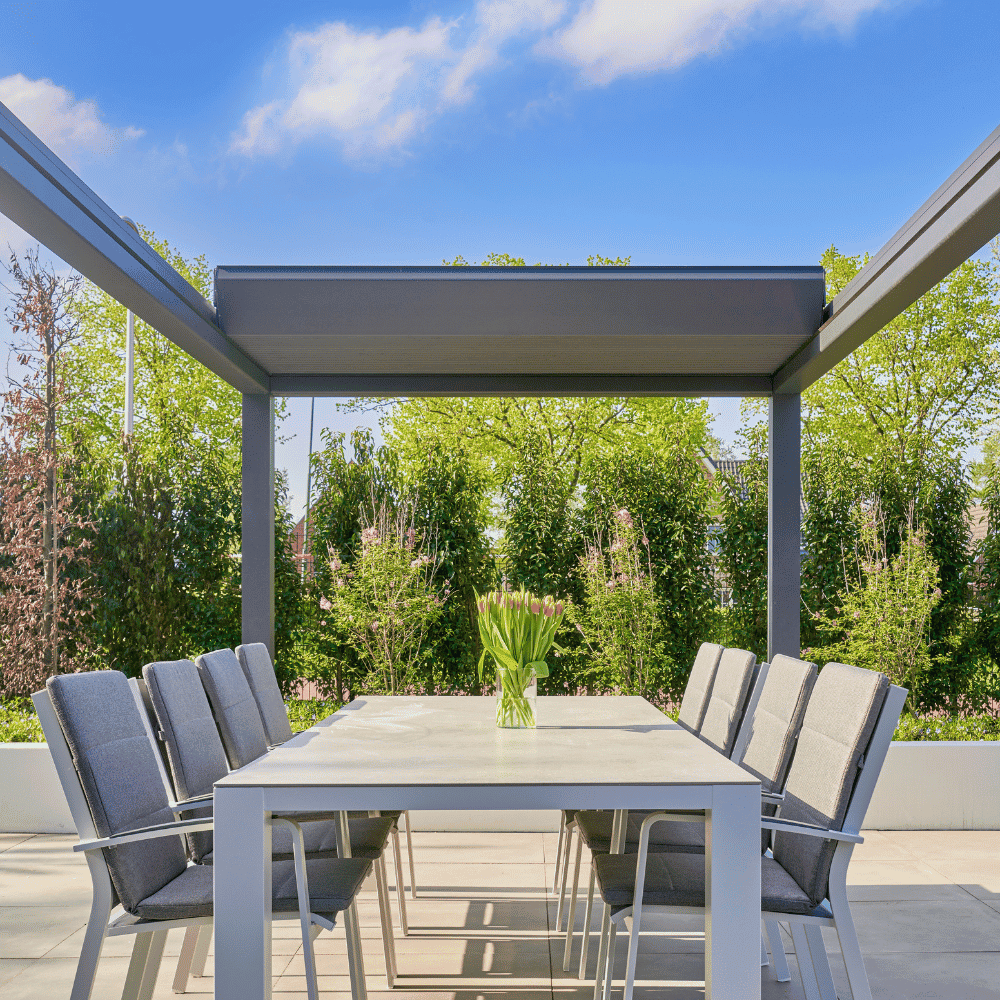

The Deponti Pinela Deluxe Plus is a premium aluminium pergola system designed to cover large patios while keeping the space underneath open and uncluttered.
Its extra-wide retractable panels allow spans of up to 7 metres with just two posts, whether installed wall-mounted or freestanding.
See the Deponti Pinela Deluxe Plus in Use
This video shows the Pinela Deluxe Plus installed and operating, helping you understand scale, panel movement, lighting, and how the pergola looks once in place.
Extra-Wide Retractable Aluminium Panels

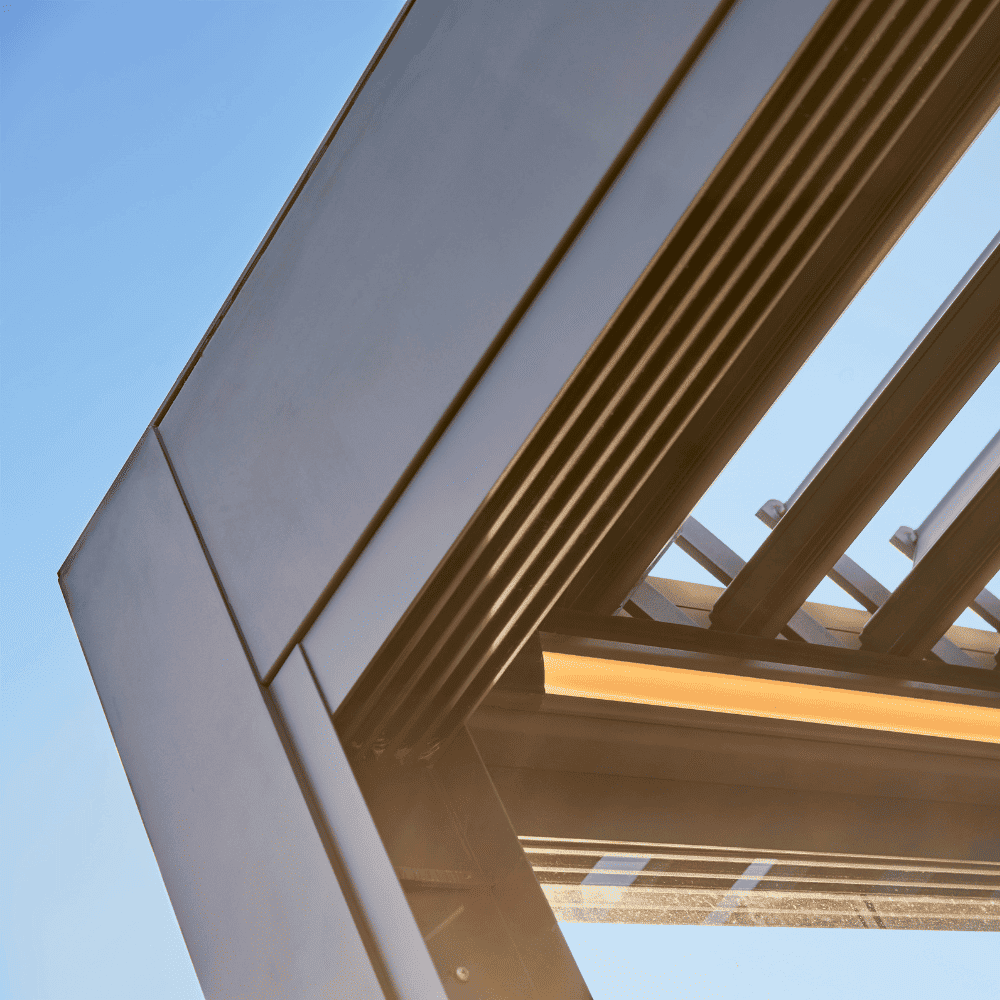

The Pinela Deluxe Plus uses enlarged aluminium roof panels that slide together when open and form a sealed surface when closed.
Using fewer, wider panels improves rigidity, reduces visible joints, and creates a cleaner roofline compared to standard multi-panel systems.
Up to 7 Metres Wide With Only Two Posts
The structural design allows the pergola to span up to 7 metres while using just two posts.
This wide-span capability applies to both wall-mounted and freestanding installations, keeping the area underneath open for dining, seating, and clear walkways.
Enhanced Weather Sealing When Closed
When the roof closes, the wide panels press simultaneously into integrated gutter rubbers.
This compression system improves resistance to rain and wind, helping the space remain usable in less predictable weather.

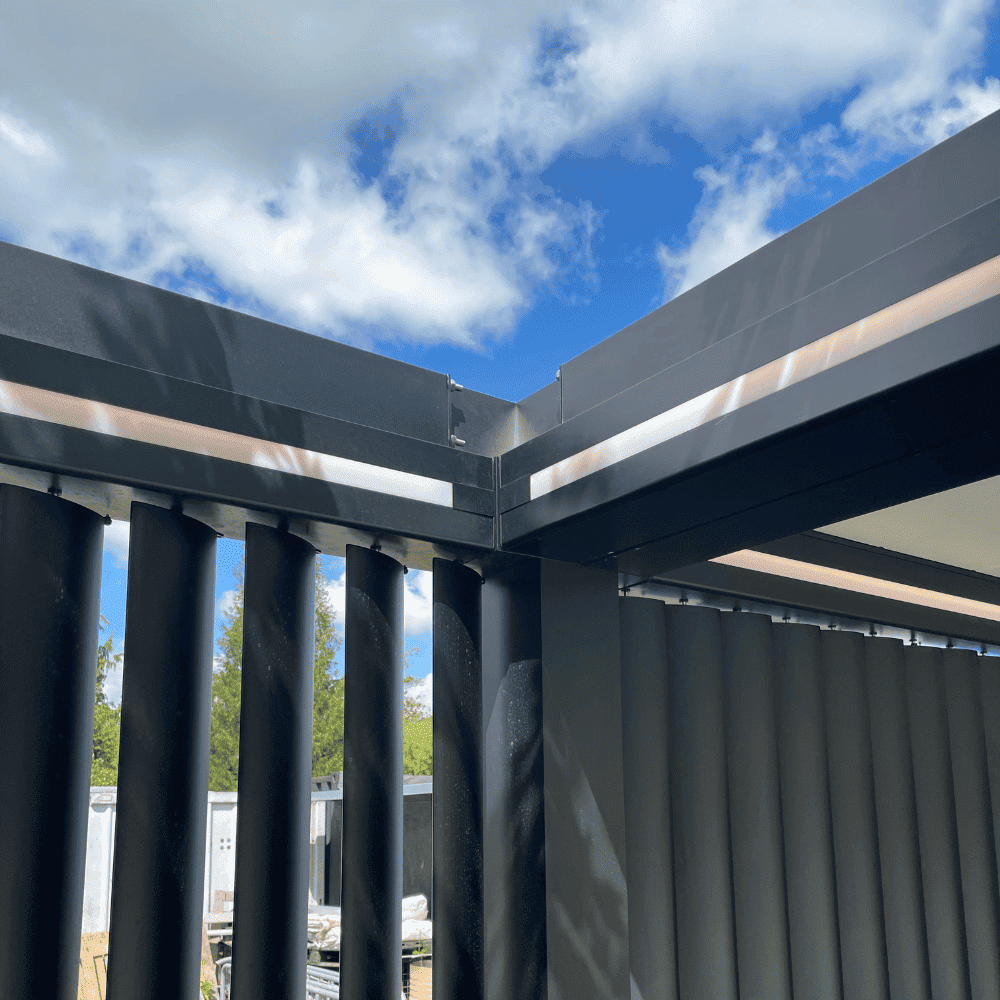

LED lighting included as standard
Warm LED lighting is built into the structure and controlled via the remote, making the pergola comfortable to use in the evening.
SOMFY Remote Control
Roof movement and lighting are operated using the supplied SOMFY remote, with optional IO control available.

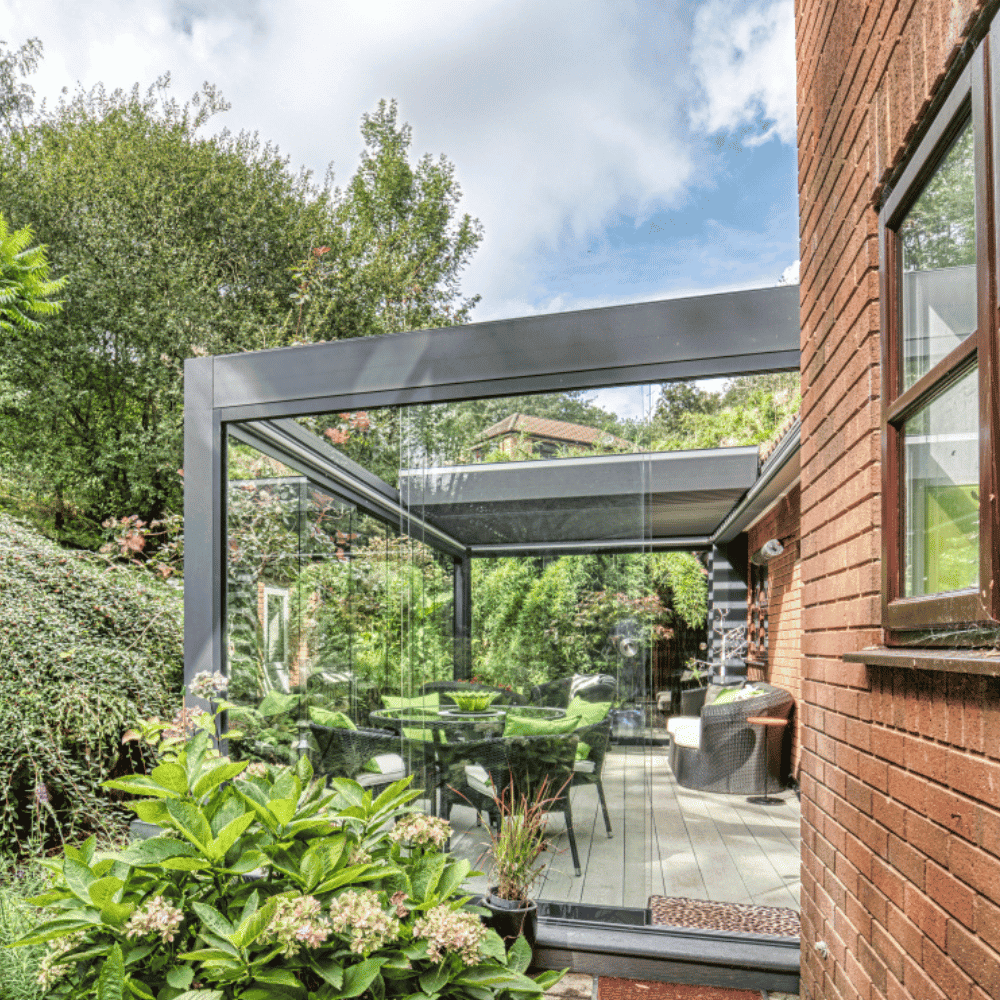

Optional glass enclosures
Sliding glass panels can be added to reduce wind and extend the usable season.
Specifications
| Category | Specification |
|---|---|
| System Type | Motorised aluminium pergola with retractable roof panels |
| Installation Options | Wall-mounted or freestanding |
| Maximum Width | 6980 mm |
| Available Widths | 3124 / 4088 / 5052 / 6016 / 6980 mm |
| Available Projections | 3000 / 3500 / 4000 / 4500 mm |
| Post Configuration | Two front posts across full width |
| Post Dimensions | 150 × 150 mm aluminium posts (3 mm wall thickness) |
| Roof Panel Type | Extra-wide retractable aluminium slats |
| Roof Panel Width | Approx. 365 mm per panel |
| Roof Panel Thickness | 2.4 mm / 2.14 mm aluminium construction |
| Gutter System | Integrated aluminium gutter with compression sealing |
| Gutter Dimensions | Approx. 300 mm depth |
| Gutter Material Thickness | 3 mm / 2.75 mm aluminium sections |
| Weather Sealing | Panel-to-gutter compression sealing when closed |
| Operation | Motorised roof operation via SOMFY remote control |
| Control Upgrade | SOMFY IO control (optional) |
| Lighting | Integrated LED lighting included as standard |
| Colour Options | RAL 9016 White / RAL 9005 Black / RAL 7024 Anthracite (textured) |
| Certification | CE certified |
| Optional Extras | Sliding glass enclosures, additional control options |
Technical & assembly documents
Download the official Deponti documents below for full technical details and installation guidance.
- 📄 Pinela Deluxe Plus Technical Specification (PDF)
- 📄 Pinela Assembly & Installation Manual (PDF)
Installation & Custom Quotes
The Pinela Deluxe Plus is available supply-only or with optional professional installation. If you’d like help choosing sizes, layout, or optional upgrades, you can call us for a custom quote.
We’ll talk through your space, exposure, and how you plan to use the pergola before you commit.
Ready to configure yours? Choose your options above or contact us for clear, practical advice.
