Cubo Aluminium Patio Roof

A crisp, cubic roofline that turns your patio into a room you will actually use, in any colour you like.

A patio only earns its keep if you can actually sit out there. Rain stops play, the sun bleaches your furniture, and a flimsy canopy looks like an afterthought bolted onto the house. Cubo solves this properly. It is a full aluminium roof system with a flat, cubic profile that reads as part of the building rather than something stuck on top, and it is engineered to stay square, quiet and watertight through UK weather for years.

What Makes The Cubic Shape Work So Well?

Cubo is built around a one-piece support profile that runs right around the roof, with an integrated gutter hidden inside it. That box-like edge gives the whole structure its signature flat, sharp-cornered look, rather than the sloped, shed-style profile you get with cheaper canopies.

Because the support structure is so rigid, Cubo holds its shape even before any glass goes in. You get a roof that looks intentional and architectural, whether it is fixed to the house or standing free in the garden.

How Big Can You Actually Build It?

As a single-pitch roof, Cubo spans up to 6.7m without a middle post, or up to 12m with one added. Roof depth goes up to 5m. Built as a saddle roof (a double-pitched design), depth increases to 6m and width to 12m.

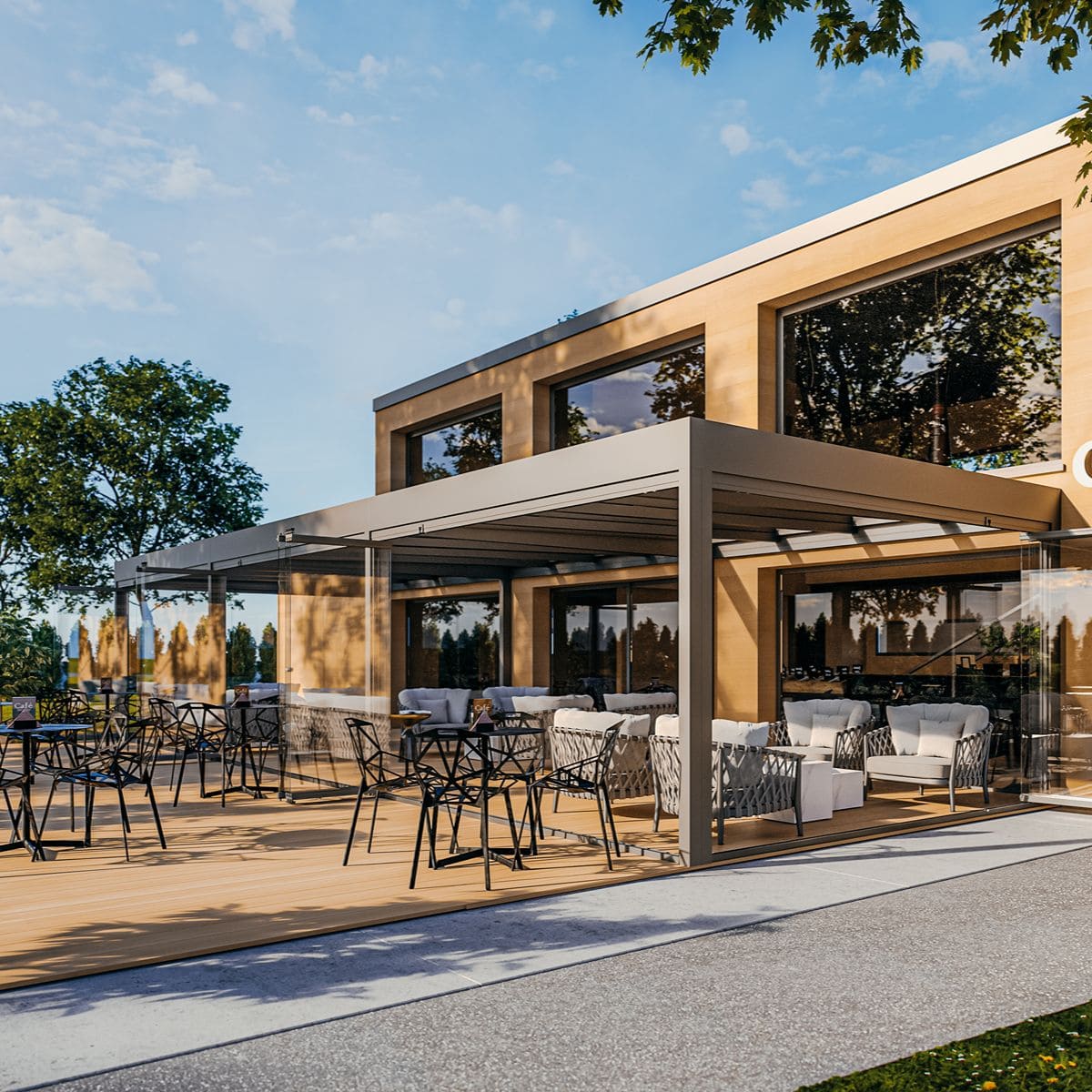

This makes Cubo a genuine option for a full-width family patio, a restaurant terrace or a large multi-family garden, not just a small seating nook by the back door.

Will It Take UK Weather?

Cubo carries a surface load rating of up to 3.5 kN per square metre, covering demanding snow and wind conditions. The corner joints between the support profile and posts are made from high-quality steel, so the frame stays stable and meets recognised structural glazing standards.

Drainage is built in too. The gutter clears up to 15 square metres of roof per downpipe, even in heavy rain, so you are not left with pooling water after a storm.

What Glass And Roofing Options Do You Get?

Cubo takes glass from 8mm up to 31mm thick. Choose lighter glazing for a simple canopy, or thicker laminated glass for extra security and sound reduction. Four rafter sizes cover different spans, and all can take an optional steel insert for bigger builds.

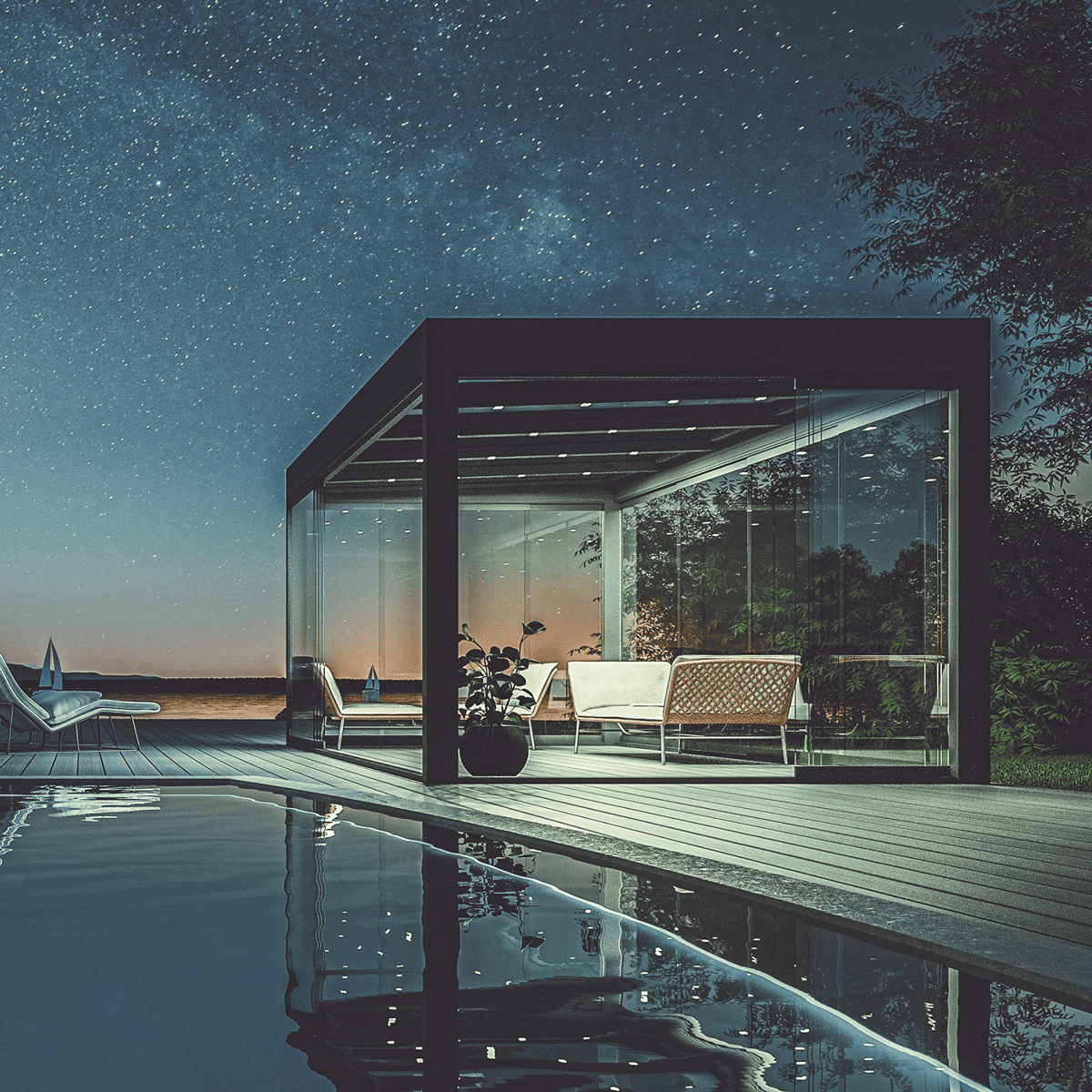

If you want ambient light after dark, LED strips fit directly into the rafters with a simple plug-and-play connection rather than a separate rewiring job.

What Roof Shapes Can You Choose?

Cubo comes in five standard configurations: wall-mounted on one side, wall-mounted on two sides, free-standing, self-supporting against a wall, and the saddle roof for larger spans.

Every Cubo is finished with flush covers and matching end caps, so from any angle it looks like one continuous, considered roof rather than a kit of separate parts.

Cubo Specifications

Frequently Asked Questions

Do I Need Planning Permission For Cubo?

It depends on the size, position and your property type. For a full breakdown of when permission is usually needed, see our guide: Do I Need Planning Permission For A Lean-To Pergola.

Can I Get Cubo In A Custom Size?

Yes. Cubo is made to order rather than sold in fixed sizes, so it can be built to fit your exact patio. Contact us for more details on sizing.

Can I Choose Any Colour For My Cubo Roof?

Yes. Every Cubo is made to order in the colour of your choice, rather than a limited standard range.

How Long Does Delivery Take?

Cubo is made to order, with a typical delivery time of 6 weeks from confirmation of your specification.

What Warranty Comes With Cubo?

Cubo carries a 15-year warranty. It is backed by independent certification, including ISO 9001 quality management, DIN EN 1090 production control, ISO 14001 environmental management, certified sound insulation and wind resistance, RC3 burglar resistance, and CE marking in line with EU requirements.

Does Cubo Need Much Maintenance?

No. The aluminium frame and powder-coated finish are built to withstand UK weather with very little upkeep. An occasional clean of the glass and gutters keeps it looking sharp.

Ready To Talk Through Your Cubo Roof?

Every Cubo is built to order for your garden, so the best next step is a quick chat about your space, your preferred colour and your budget. Call us or send through your patio dimensions and we will help you shape the right specification, with delivery in around 6 weeks.
